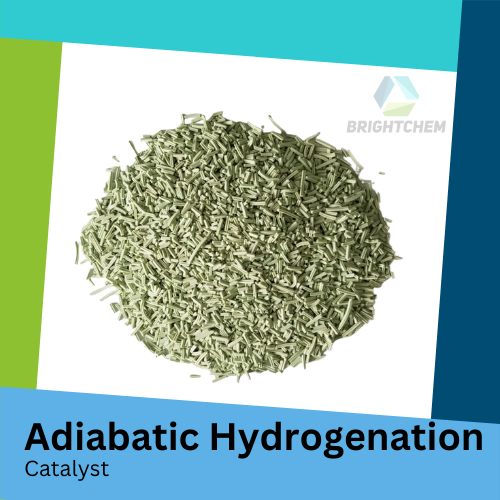

Read MoreAdiabatic Hydrogenation Catalyst

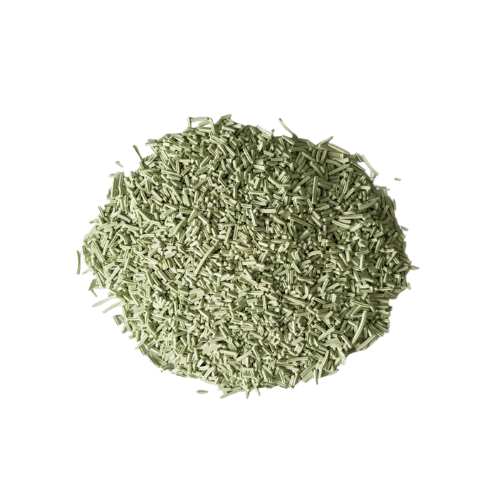

Adiabatic Hydrogenation Catalyst is a catalytic used for the saturation of olefins and the desulfurization of organic sulfur compounds, with a modified γ–Al2O3 support and Active Component such as Co、Mo、Ni. It is suitable for the refining treatment of hydrogen production feedstocks derived from natural gas, coking dry gas, catalytic dry gas, refinery gases, LPG, and naphtha.
Characteristic:
This group of catalysts exhibits several characteristics, including a low initial activity temperature, low bulk density, high pore volume, and large specific surface area.
It has even distribution of active components, high hydrogenation and organic sulfur removal activities, and good activity stability. The comprehensive performance and technical indicators of this catalyst meet international advanced levels and are at the forefront of technology in the china market.
| Technical Data Sheet | |||
| Items | QJH-03 | QJH-02 | QJH-02G |
| Shape | Gray-Green Stripe | Gray-Green Stripe | Gray-Green Stripe |
| Size(mm) | Φ2～3 | Φ2～3 | Φ2～3 |
| Active Component | Co、Mo、Ni | Co、Mo、Ni | Co、Mo、Ni |
| Bulk Density(kg/l) | 0.45～0.65 | 0.45～0.65 | 0.45～0.65 |
| Average Crush Strength(N/cm) | ＞150 | ＞150 | ＞150 |
| Operating Temperature(°C) | 220～400 | 220～400 | 220～400 |
| Operating Pressure(MPa) | 0.5～5.0 | 0.5～5.0 | 0.5～5.0 |
| Space Velocity(h-1) | 500～3000 | 500～3000 | 500～3000 |
| Inlet Organic Sulfur(ppm) | ≤200 | ≤200 | ≤200 |
| Inlet Olefin Concentration(%) | ≤7 | ≤7 | ≤7 |
| Thiophene Conversion(%) | ≥70 | ≥70 | ≥70 |
| CoO+NiO(%) | ≥3.0 | ≥2.0 | ≥2.5 |
| MoO(%) | ≥10.0 | ≥9.0 | ≥13.0 |
